Description

Download contains 100% Scale PDF, DXF, 3D CAD model

3D CAD Model View Only Link

Click the link above for interactive image that can be zoomed, and rotated.

The PDF can be used as a template to fabricate a clip yourself. The DXF file is used if you want to have them cut out with CNC machines. The DXF can also be edited to customize the clip to your application. The 3D model can also be edited to suit your application.

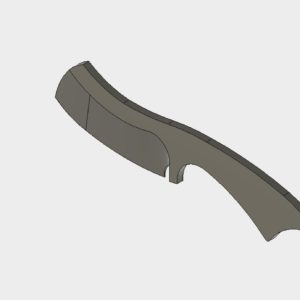

The clip shown in images is this clip that has been water jet cut out of 1 mm Titanium and bent.
